About Product

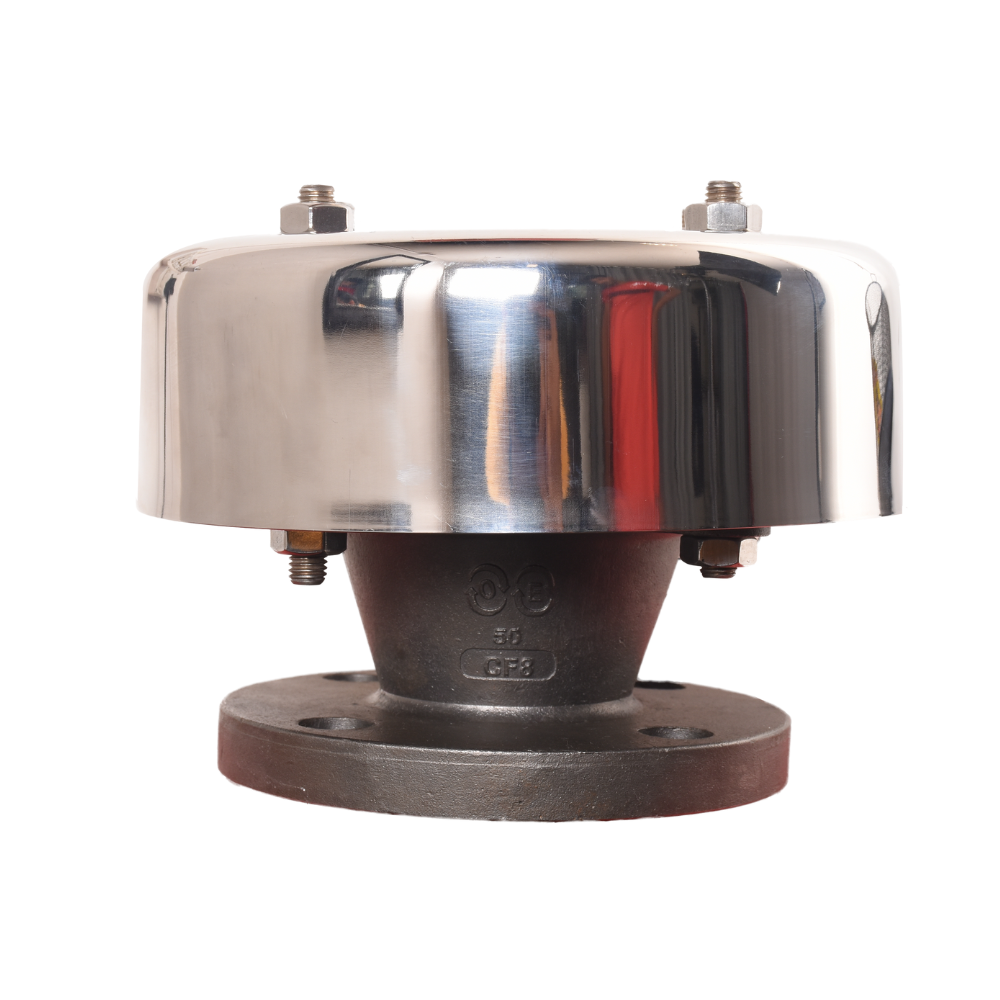

End-of-Line Flame Arresters are designed to be installed at the termination point of a pipeline or the vent outlet of a storage vessel, where their primary function is to prevent external flames from entering the system. Contrary to common misconception, these devices are not intended to stop flames from exiting the tank or pipe, but rather to safeguard against flashback from external ignition sources.
They can typically be installed in various orientations when a weather hood is not used; however, inverted installation is discouraged, as it may cause heat accumulation, increasing the risk of flame propagation.
These flame arresters are most commonly used on above-ground storage tanks, particularly in facilities storing flammable vapors or combustible liquids, providing a critical layer of fire protection and vent safety.
•GAS GROUP COMPATIBILITY
Designed for use with Gas Groups IIA/IIB, and IIC.
•MESG COMPLIANCE
Maintains Minimum Experimental Safe Gap (MESG) as per IS 16485:2016.
•API STANDARDS
Built to meet API 2000 (7th Edition) design standards.
•CERTIFIED PERFORMANCE
Tested and validated according to ISO 16852 and IS 16485:2016.
•SENSOR INTEGRATION
Seamlessly integrates with various sensor and monitoring systems.
•CORROSION RESISTANCE
Available with special linings and coatings for handling corrosive media.
•JACKETED OPTIONS
Offered with drain ports for sticky or condensable vapor service.
DESIGN & TESTINGCODE: ISO 16852
MESG: 0.67 FOR GAS GROUP IIA/IIB & 0.2 FOR GAS GROUP IIC
PRSSURE DROP: 25 TO 50 MMWC
BODY MOC: STAINLESS STEEL (304, 316, 304L, 316L), CARBON STEEL, PFA / FEP LINED, PTFE COATING.
ELEMENT: SS 316L Ti, HASTELLOY C
END CONNECTION: FLANGED (ASME, ISO, DIN, EN, JIS )
