About Product

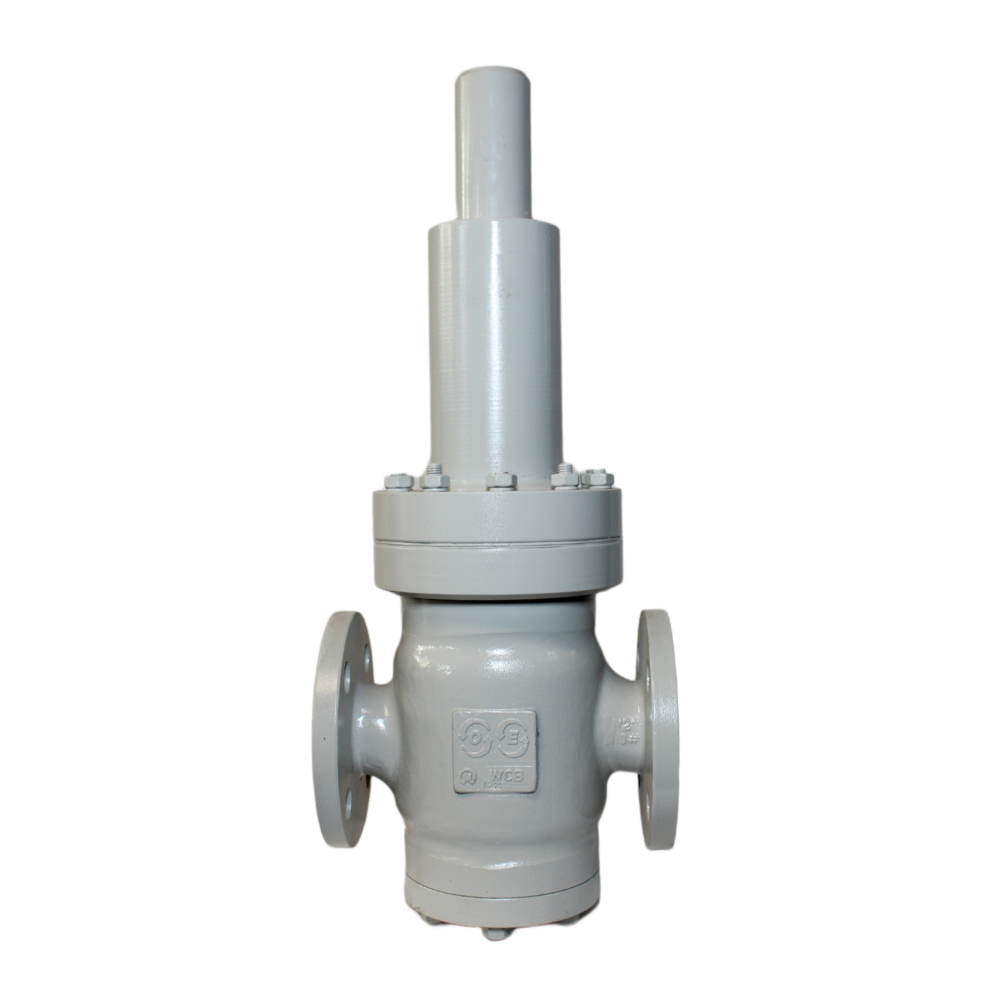

The PCH-011 from Onus Group is a direct-acting self-actuated spring-loaded pressure regulators designed for reliable and precise pressure control in industrial, commercial, and process plant applications. Ideal for all gases and liquids, this regulator ensures stable downstream pressure even under conditions of high inlet pressure variation.
Onus Group’s PCH Series is the go-to solution where reliability, simplicity, and precision are critical. Contact our engineering team to find the right configuration for your process requirements.
• SELF ACCUATED DESIGN
Fully self-contained operation without the need for external power sources like air or electricity—ideal for remote and fail-safe environments.
• PRECISE PRESSURE CONTROL
Designed to deliver accurate and consistent outlet pressure with high responsiveness, even under varying inlet conditions.
• EASY IN-LINE MAINTAINANCE
All internal components are accessible without removing the valve body from the pipeline, reducing downtime during inspection or service.
• TAMPER RESSITANT PRESSURE SETTING
Locking adjustment screw with protective cap prevents unauthorized changes to pressure settings in the field.
• LOAD-ABSORBING DIAPHRAGM ASSEMBLY
Reinforced diaphragm design absorbs system loads, protecting against rupture and ensuring consistent performance under stress.
• LEAK-TIGHT SEALING
Combination of metallic and soft seat ensures Class VI shut-off as per ANSI FCI 70.2—reliable sealing performance throughout the valve’s service life.
INLET PRESSURE RANGE: 0 TO 50 BARS
SET (OUTLET) PRESSURE RANGE: 0 TO 35 BAR
FLOW RANGE: 0 TO 18,000 NM3/HR
SIZE: 1/2” to 12”
BODY MOC: STAINLESS STEEL (304, 316, 304L, 316L), CARBON STEEL, MONEL, HASTELLOY C
TRIM: SS 304L, SS 316L, HASTELLOY C
END CONNECTION: FLANGED
